Would you like to learn how to configure a TP-LINK ARCHER AX20 AX1800 wireless router? In this tutorial, we are going to show you how to do the initial IP address configuration on a TP-LINK ARCHER AX20 AX1800 access point and how to create your first wireless network.

• TP-LINK ARCHER AX20 AX1800 - Version 1.20

Copyright © 2018-2021 by Techexpert.tips.
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means without the prior written permission of the publisher.

Equipment list

The following section presents the list of equipment used to create this tutorial.

As an Amazon Associate, I earn from qualifying purchases.

TPLINK - Related Tutorial:

On this page, we offer quick access to a list of tutorials related to TP-LINK.

Archer AX20 AX1800 - Initial configuration

Connect your computer to the Archer AX1800 using an ethernet cable.

AX1800 - Initial configuration

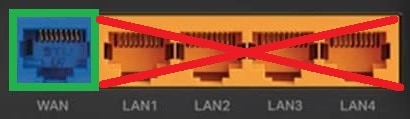

Connect the port named WAN to a device with internet access.

AX1800 - Internet link

Configure the following network address on your computer:

• IP - 192.168.0.100
• NETWORK MASK - 255.255.255.0

AC1200 COMPUTER IP ADDRESS

Turn on the TP-LINK AX1800 and wait 1 minute.

Press the reset button located on the back of your equipment for 10 seconds.

On your desktop, open a DOS prompt and try to ping the default IP address of the TP-LINK equipment.

• IP: 192.168.0.1

Copy to Clipboard

Open your browser and enter the IP address of your wireless router.

In our example, the following URL was entered in the Browser:

• http://192.168.0.1

The AX1800 web interface should be presented.

Set a management password.

TPLINK Archer X10 - Initial configuration

On the login screen, enter the management password.

ARCHER AX10 - Login screen

Select the correct timezone.

Archer X10 AX1500 - Initial configuration - Timezone

Select the best option for your internet connection.

In our example, we selected the Dynamic IP address.

Archer X10 AX1500 - WAN Configuration

Click on the Next button.

Archer X10 AX1500 - Initial configuration - MAC CLONE

Enter a Wireless network name and the desired password.

Archer X10 AX1500 - Initial configuration - Wireless configuration

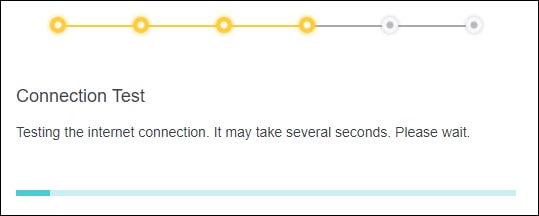

Test the internet connection.

Archer X10 AX1500 - Initial configuration - Internet connection test

On the summary screen, click on the Next button.

Archer X10 AX1500 - Initial configuration - Summary

Click on the Skip button.

Archer X10 AX1500 - Initial configuration - Cloud

If you need to change the IP address of the device, access the Advanced tab on the top of the screen.

Archer X10 AX1500 - Advanced menu

Access the NETWORK menu and select the LAN option.

Archer X10 - Network menu

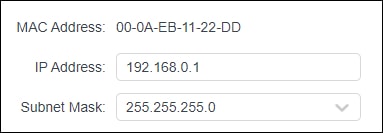

Enter the desired network configuration and click on the Save button.

Archer X10 - Network configuration

If you need to change the Wireless configuration, access the Advanced tab on the top of the screen.

Archer X10 AX1500 - Advanced menu

Access the WIRELESS menu and select the WIRELESS SETTINGS option.

Archer X10 - Wireless menu

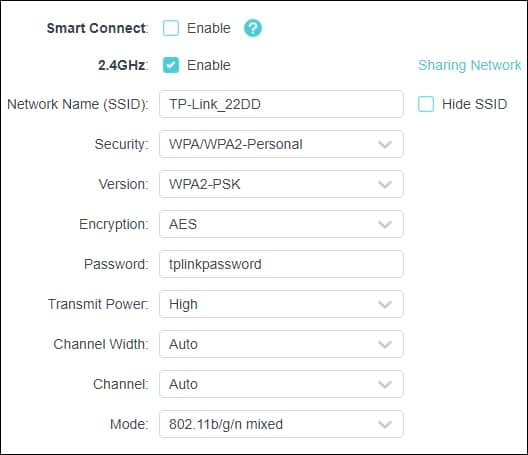

Enter the desired wireless configuration and click on the Save button.

Archer X10 - Wireless configuration

This tutorial presented the initial IP configuration process of a TP-Link ARCHER AX20 AX1800.
